Osram

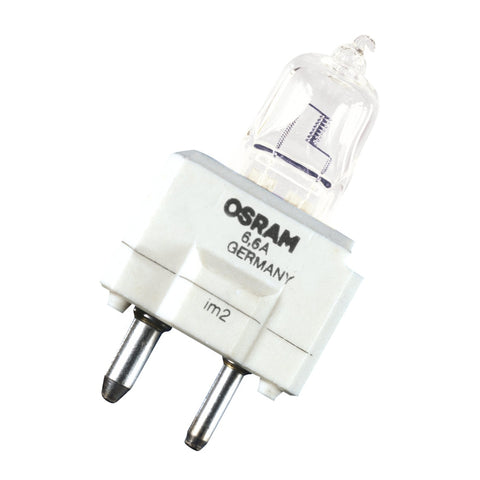

58750 Osram EZL 200W 6.6A GY9.5 T4 Clear Halogen Lamp
19.29 USD
Shipping calculated at checkout.
In stock

Buy with confidence

Need help confirming compatibility? Ask us before ordering.

Shipping calculated at checkout · 30-day returns on unused items

Confirm before ordering

Match the exact manufacturer or ANSI code, wattage, voltage or current rating, base, bulb/reflector form, dimensions, filament, and operating position shown below. Similar-looking halogen lamps are not automatically interchangeable.

Need help confirming fit? Email help@dynamiclamps.com with the equipment manufacturer, model, and existing lamp marking.

Specifications

58750 Osram EZL 200W 6.6A GY9.5 T4 Clear Halogen Lamp specifications

Shopify SKU OSR-EZL
Electrical rating 200 Watts 6.6 Amps
Configuration Single Ended
Base / connection GY9.5, 2 Pin Base
Bulb / form T4 Bulb Type
Rated average life 1300 Hours Rated Average Life
Color temperature 3100K Color Temp
Light output 5200 Lumens
Color rendering index 100 CRI
Filament CC-6 Filament
Optical / finish Clear Bulb
Product detail Dimmable
Maximum overall length 2.56 in (65 mm) Max Overall Length
Bulb / form .51 in (13 mm) Bulb Diameter
Other part numbers 58851, 6.6A/200T4Q/2PPF/58750/EZL/DL
Equipment compatibility

Equipment and application fit

Used in airfield lighting

  • Use only in equipment whose lamp list and electrical, optical, thermal, and mechanical design specify this exact lamp or a fully documented equivalent.

Socket fit alone does not establish compatibility. The equipment label, current service manual, and installed-lamp marking take precedence.

Brand alternatives

Cross-reference search aids

58851, 6.6A/200T4Q/2PPF/58750/EZL/DL

Confirm any substitute against the complete electrical, mechanical, optical, filament, dimensional, and operating specification. A shared ANSI code may identify a lamp family but does not override equipment requirements.

Documentation & safety

Manufacturer documentation and handling

Halogen safety: Disconnect power and allow the equipment to cool before service. Install only in approved enclosed equipment with the required protective screen, ventilation, electrical controls, and shielding. Handle quartz with clean gloves or lint-free tissue and avoid touching the envelope with bare skin.
