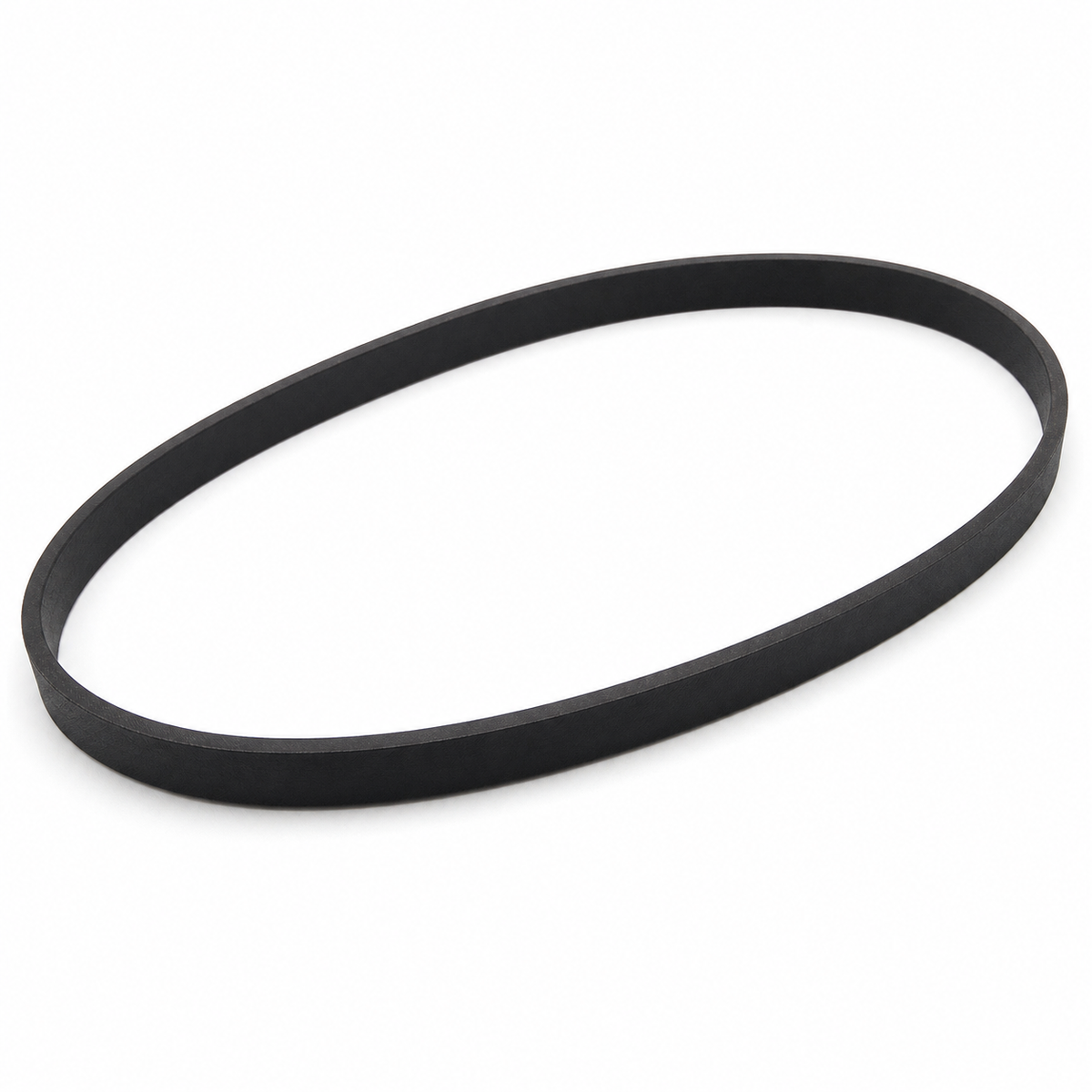

FBM 10.5 Medium Flat Audio Drive Belt – 10.5 in

FBM 10.5 drive belt specifications

Confirmed equipment and part references

FBM 10.5 is a dimensional flat mechanism belt used in compatible home-audio equipment and, for some references, automotive radio, cassette, or 8-track mechanisms. It is not an automotive engine or accessory belt. Match the complete model or original part number before ordering.

Confirmed equipment models

Admiral

STC-1561M, STC-1571, STC-1591M

Airline / Montgomery Ward

GEN-2217A, GEN-221OA, GEN-6208A, GEN-6209A, GEN-6210, GEN-6210A, GEN-6217A, GEN-6218A, GEN-6219B, GEN-6227A, GEN-6229A, GEN-6230, GEN-6230A, GEN-6247A, GEN-6308, GEN-6308A, GEN-6317A, GEN-6318A, GEN-6318B, GEN-6330A, GEN-6341A, GEN-6442A, GEN-6822A, GEN-6822B, GEN-6827A, GEN-6828A, GEN-6927A, GMJ-2084A, GMJ-2094A, GMJ-2125A, GMJ-2290A, GSA-2123A, GSA-2132A, GSA-2153A, GSA-2153D, GTB-2025A, ZCX-16722A, ZCX-16753, ZCX-16753A, ZCX-16753B, ZCX-16753C, ZCX-16753D

Akai

CS-F33R, GXC-570D, GXC-740D, GXC-750, GXC-760D, GXF-44R, SSF-36R, SSF-39R

American Motors

H075-TPA, H075-TPX

Arthur Fulmer

501S, 73AAF, 791

Audiovox

MD-2560C

Automatic Radio

23, E-10001, HLX-2534, MDD-2560C, PED-2512, PSM-2456, SPA-5000B, SST-1179

BSR

AT-100, C-129, C-129A

Belair / Bel Air

STEREO-8

Bonsonic

MPX-8000

Bowman

294-8PB, BM-1100, BM-1110, BM-8415, BM-900VW, BM-910, BM-911, BM-922, BM-926, BM-950, SP-191, SP-90, SP-991

Bradford

2127-C08

Broadmoor

2191

Buick

26810-173

Capehart

1501-CT8, 1502-CT8, 21-V700B, 42-B426801, 7004-AT8, 7004-T8, 7005-AT8, 7006-AT8, 7008-AT8, 7020-AT8, 7200-AT8, AMD-302, AMD-302A, AS-123, AT-119, KMT-161A, KMT-229, STC-63

Cartape

8999-093, CT-3700, CT-3700A, CT-3800, CT-3900, CT-4800, CTI-3800, CTI-8599, X-8010

Catalina

16-565, 21V4790, 21V7020

Channel Master

6200, 6204, 6206, 6326, 6376, 6385A, 6638, 6646, 6647, F-052, F-52, F-659, H-6075, I-089, I-244

Chrysler

26810-173-RADIO-PART-NUMBER

Clarion

PE-423

Columbia

557, 557-M9

Concert Hall

21-V7008, 99-3062

Coronado

56-10-902, PH29-62629, PH29-62844, PH29-62945, PH29-62950, PH45-17178A, PH45-17186A, PH45-17194A

Craig

3211, H241, H301, H340, H341, H360, H362, H364, H365

Dicco

MGC-101R

Dynatronics / Inland

AT-830

Dynatrons

DS-6025, DS-6027, DS-6072, DS-700, DS-813, DS-814, DS-836, DS-842, DS-880, DS-882

Dynavox

819, 937

Electra

8TR-750, 8TR-800, QM-1000, QM-1500, QM-TP-1, TP-1N

Federal Transistor

MPX-7000, MPX-8000, PT-900

Fisher

ER-8020, ER-8120, MC-3000, MC-3010, MC-3015, MC-3050, MC-3160, MC-4000, MC-4005, MC-4010, MC-4050

GMC

26810-17, CHT-7S-TPA, CHT-7S-TPX

General Electric

1315299, 1315664, 3-5503A, 3-5505C, 3-5505G, 3-5507B, 3-5507C, 3-5515A, 3-5520C, 3-5530C, 3-5532B, 7-7405B, 9-7110A, 9-7110B, 9-7201A, CP-808C, EA-3338, EA1X-307, EA1X-381, EA2X-237, EA4X-452, M-8340, M-8340A, RV-2114, SC-2307B, SC-300B, SC3300B, TA-556B, TA-640, TD-81B, TD-81G

Granada

HOME-8-TRACK

Grand Prix

2600, 2900, 3100

Hammond

HD-500

Hitachi

CS-17501C

J.I.L.

809-RAM, 810-VMPX, 817FM, 822FM, SS-190, SS-90

JCPenney / Penncrest / MCS

101, 1048-9235, 1059-1154, 1088-5028, 1103-2653, 1145-9740, 1701, 1713, 1740, 1742, 1769, 1785, 1786, 1789, 1805, 1900, 1910, 21V003, 21V7008, 21V7020, 23306-0, 23306-1, 3012, 3241A, 3312, 3400, 5001, 5003, 5004, 5130, 5131, 5150, 5154C, 5155CD, 5156, 5156A, 653-3442, 7010, 7011, 851-0224, 853-0024, 853-0230, 853-0297, 853-0438, 853-0446, 853-0453, 853-0461, 853-0487, 853-0495, 853-0529, 853-0693, 853-0776, 853-0792, 853-1535, 853-3077, 853-3119, 853-3442, 853-3481, 853-3507, 853-3549, 853-3580, 981-0161, 981-0165, S204A

JVC

KD-V33

Juliette

8TR-155, C501

Kmart

K-100B

Kraco

KQ-600, KS-666B, KS-77C

Lear Jet

A-10, A-109, A-110, A-119, H-310

Lloyds

2A-61, 2A-62, 2V-61W, 2V-76, 804-205A, 8111013, BB-7892, BB-8593, BB-8890, BB-8893, BB-8913, BB-8916, BB-9807, D-670, DD-9720, DD-9910, FK-04447, FK-05007, FK-05207, FK-05858, FK-06087, FK-06417, FK-06594, FK-06659, FK-06703, FQ-04597, J-248, J-251, M-717, M-721, M-747, QL-01672, QT-01676, R889, R891, R973

Magnavox

FC1442

Marlin

8200, 8500

Mayfair

M-810, M-811

Medallion

65-500

Metro Sound

MS-9000

Midland

65-500

Mikado

M-805, M-806, M-88

Mitsubishi

TD-83

Morse

1048-9235, 1500, 215, 216, 217, 220-0, 2400, 2UA, 3400, 6360, 6970, 81, 90F-1, 90F-2, 915, 916, 917, 94P-1, D-39T-440CE, FF-6660, FR-1510, FR-1712, FR-2010, FR-2011, NN-8860, P-39, T-242, T-243, T-4200, T-440CE, T-460, T-954, TC-241, TC-242, TC-243, TC-43, TRD-53

Motorola

3JD-5210, 40818G01, TD221, TD229, TD231, TM203, TM204, TM213, TM2265, TM3165, TM402, TM402S, TM413, TM416, TM416S, TM703, TM833, TM92051, TP752, TP752S, TP852, TP852AX, YF8252AX

Muntz

PU-607A-D1, PU-860, PU-880

Oldsmobile

26810-173, CNO-75-TPA, CNO-75-TPX, OL-75-TXA, OL-75-TXP, OLF-75-TPA, OLF-75-TPX, VE-75-7PA, VE-75-7PX

Onkyo

DXC-110

Opel

26810-17, OPL-75-TRA, OPL-75-TRX

Philco / Ford

11-14207-72, H-841-GWA, H-842-GMA, H-843-GPC, H-848-GPC, H-8616-WA, H-862-GMA, H-862-GMGPN, H-863-GDK, H-868-GDK

Philips

3170, CPR-75-TPA, CPR-75-TPX, FMK-75-CXP, FPT-75-TPX-A, FTR-75-TPA, FTR-75-TPX

Philmore

VC-950

Pioneer

CT-F800, CT-F8080, CT-F8282, CT-F850, CT-F900, CT-F9191, CT-F950, RH-2255, RH-4411, TH-2211, TH-30, TH-303

Pontiac

CHT-75-TPA, CHT-75-TPX, CNO-75-TPA, CNO-75-TPX, OL-75-TPA, OL-75-TPX, OLF-75-TPA, OLF-75-TPX, PF-75-CX, PGP-75-CXP, PO-75-CXP, VE-75-CXP, VE-75-CXTPX

Precor

1026

Radio Shack / Realistic

12-1390, 12-1401, 12-1402, 12-1402A, 12-1402B, 12-1813R, 12-1816, 12-1818, 12-1832, 13-1195, 13-1197, 14-1920, 14-910, 14-915, 14-916, 14-916A, 14-920A, 14-928K, 14-942-TR-80, 14-942R, 14-945, 14-945B, 393, 42-B40818G01, 46DK01, 561-09-02, CLARINETTE-95, CTR-80, M-18017, TR-169, TR-8, TR-80-14-942

Realtone

4486

Rhapsody

RY-481

Riviera

CS-809

Ross

8431, 8432

Sanyo

DXL-5480, DXT-5004, DXT-5204, DXT-5205, DXT-5240, DXT-5250, DXT-5252, DXT-5252A, FT-863M, GXT-4800, GXT-4848, GXT-5260-8TRACK

Sears

132-91722500, 132-91734700, 132-91831700, 132-91851700, 132.918517, 2013029-33, 2013735-24, 31556, 400-9142500, 400-91712700, 548.315561, 548.316021, 564.5042, 564.5048

Sharp

SG-150-MARK-I, SG-150-MARK-II, SG-151, SG-151-MARK-II, SG-15T-MARK-I, SG-3910, SR-150

Skyline

CR-87

Sony

HM-E118, HM-E228, HM-E338, HM-F334, HS-T48, HS-T68

Soundesign

2022, 21V-7020, 21V-7080, 3802A, 4448B, 4482B, 4485, 459, 460, 4634, 4719, 4719T, 477, 4774B, 4782B, 4790, 4840B, 4937, 5345, 5409, 5513, 561-0902, 5715, 5729, 6243, 62L1, 650, 650F, 650FB, 6514, 6536, 68D, 6990, 69D, 69F, 69FB, 868, 9117SF, CP-103RW2, MC-595, REC-6780A-67, REC-6890A-67, S-3201PR, S-4245PR, S-4544PR, S-5540FR, S-5586CR

Stereophonic

499S, 971, 971S

Sylvania

H-848GPC

Symphonic

1253T, 1323T, 1324T, AT119, T280

TEAC

A-480, A-660, C-1, V-7

Tanashin

TN-88N, TN-999

Tanglewood

4719T

Technics

CQ-999EU, CS-809, CX-175, CX-176, RE-8585, RMQ-464Z, RP-9090, RQ-2285, RQ-444, RQ-4445, SJ-D152, SJ-D156, SJ-D232, SJ-D234

Telex

2761

Tenna

14467, MINI-8-27051, MINI-8-7051, MLNI-8-7042, MPX-71T, RR-60, RR-62, TC-49PMK, TC-79T, TC-TFMK

Tonika

K-2

Toshiba

3MC-4550

Toyota

86021-21030, 86260-20030, 86260-20040, 86260-22021, 86260-22031, CX-361, YAFR-01023

Truetone

GPE-6005A-08, GPE-6042A-08, GPE-6805A-08, LJI8003AZ, LLD8113A, MAE8505A77

Universal

TM-2000

Webcor

350

XTAL

XA-82, XA-84

Yamaha

TC-511B, TC-511S

Yorx

21V7080, 2600, 2900, 3100, K6060, L6454, L6457, M2612, M2657, R5260, R5263, R5265

Zenith

169-485, 169-490A, 169-491, 169-510G, 169-521, 169-521G, 169-588, F635, IS4041, IS4061-2, IS4071-2, IS4080, JR900-P36, JR919P1, LR902P, LR902P1, LR912AE, LR915P, LR915P1, LR915P2, LR916PN, LR916PN1, LR919P, LR919P1, LR920AE, M900P, M902P, MC6010, MC6020, MD912AE, MD919P, MR915P, MR916PN, MR917M, MR920AE, ND902P, SL-2597-P9

Original part-number references

Akai

MB314317, MB359875, MB360532, MB365408, MB669036

American Motors

26810-173, MAT75-TPXA, PAC75-TPXA

Audiovox

23, 28810202

Automatic Radio

67A-17229, 79-47

Azusa

5610902

Boman

233061, 538083

Cartape

233061

Craig

3209064, 3211103, 3305190

Electro Brand

6712

Emerson

521D05001, 521D050010

Esquire

5610902, J391171

Ford / Mercury

26810173

GC / Walsco

1424-21

Hitachi

6350732

Inland

480113

Itoh

21V7009, 21V7021, C4480, M5446P

JCPenney / Penncrest / MCS

171131002, 171131003, 175049001, 175049003, 42B40286J01, 5610902

JVC

PU50959-2

Kraco

10344, 1500286, 233060, 521400019, A50381, D43, JC0103

Lear Jet

7731126401, 7735750006, 7739040010

Lloyds

2A62, 2V61, 2V76, IV58, V670

Magnavox

7016751

Medallion

65198004

Midland

19198009, 19198010, 65198, MNM6410A47

Mitsubishi

521D020010, 521D050010, 521L00201

Montgomery Ward / Airline

2012A132, 39MW509, 46M030, 5610902, 62589434, 62595604, 8999093, GA12325A, GA12325B, GA12325C, GA12335A, GA12335B, GA12335C, GA12355A, GA12355B, GA12355C, GA12425A, GA12425B, GA12425C, GA12435A, GA12435B, GA12435C, GA12455A, GA12455B, GA12455C, J391171, J391203

Morse

21V8500, 46M022, 46M030, 46M043, 46M060

Motorola

424081G01, 4241503G03, 4242683B03, 4243114C01, 42B4268B03

Panasonic

QDBT0011, QDPT0011, YAFR01023, YEFR03014

Philips

1200100

Pioneer

CNT044, REB150, REB270

Pontiac

26810173

Radio Shack / Realistic

21V7020, 21V7037, 6350732, 6637014-942R, B600414-910, B600414-928K, B627813-1195, B6327, B637014-942, B6374

Sanyo

131-2-4804-00120, 131-2-610200, 132-91734700, 132-91851700, 141-2-562T-03100, 147-2-561T-00300, 147-2-561T-00301, R-447857

Scott

521D05001

Sharp

5610902, 91T5610902, NBLTH0014GEOO

Sony

4-891-942-00

Soundesign

1100502, 1120202, 1172603, 1510702, 5610902, 91076F

Sylvania

111420772

Symphonic

142421

TEAC

51930150, 55345040, 5534504000

Tanashin

1172603, 1510702

Tandy

15A-0070, B-6374

Tenna

171131002, 171131003

Thomson

167347, 740565, 740913, RT3798

Toshiba

257352

Truetone

MN6410A47, MNM641A47

Universal

26810173

Zenith

832207, 96951, 96954

Compatibility is model-specific. Service documentation, model plate, belt path, and original dimensions take precedence where they differ. Some equipment uses additional belts of other sizes or profiles.

Before choosing another size

No other belt size or profile is an automatic substitute. Confirm circumference, width, thickness, cross-section, belt path, and operating position before ordering.

1. Disconnect power and open the equipment as directed by its service documentation.
2. Remove residue and clean the pulley and belt path without leaving oil.
3. Install without twists and turn the mechanism by hand before powering the equipment.
